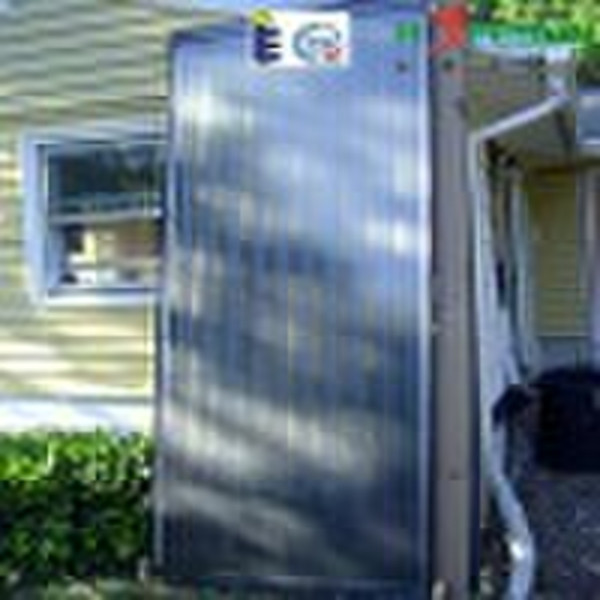

Ultrasonic welding Solar Collector
original price: 150,00 USD
Mac Chan
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | Hopesun |
| Model Number | HSC-01 |
flat plateSolar Collector, flat solar collector *OEM *SOLAR KEYMARK,EN12975 TUV *5YRS WARRANTY Nickel bottom black chrome series Specification: Absorber coating: Nickel bottom coating + Selective black chrome surface. Optical Performance: Absorption: 95% / Thermal Emission: 10% Frame Casing: Anodized Aluminum alloy. Cover glass: Low iron tempered patterned glass/pattern tempered glass. Insulation: 25mm soft fiberglass layer + 25mm high- density fiberglass board/polyurethane foam. Back sheet: Embossed aluminum plate/galvanized steel plate. Sealing profile: EPDM. Connection:Ø22/25mm 1060*Ø25/22*0.60mm(L*OD*Thickness) Riser tubes: 8 copper tubes in 1886*Ø10*0.45mm(L*OD*Thickness) Absober fins: 8 copper fins in 1840*125*0.15mm(L*W*Thickness) Ext. Dimension: 2000 x 1060 x 82/95mm (L x W x H) Gross /Aperture area: 2/1.85m2 Operation pressure: 650Kpa / 6.5bar. Testing pressure:12bar Maximum operation temperature:200°C MODEL SELECTION: Model Number HSC-01QT-8HSC-01TL-8Absorber finCopper TP2AluminumRiser tubeCopper TP2- Ø10mmCopper TP2- Ø10mmHeaderCopper TP2- Ø22 / Ø25mmCopper TP2- Ø22 / Ø25mmNumber of risers 88
Delivery terms and packaging
Packaging Detail: Four corners and connection pipes are protected by foam and cardboard carton. Delivery Detail: 14 days after the receipt of deposit
Port: Guang zhou
