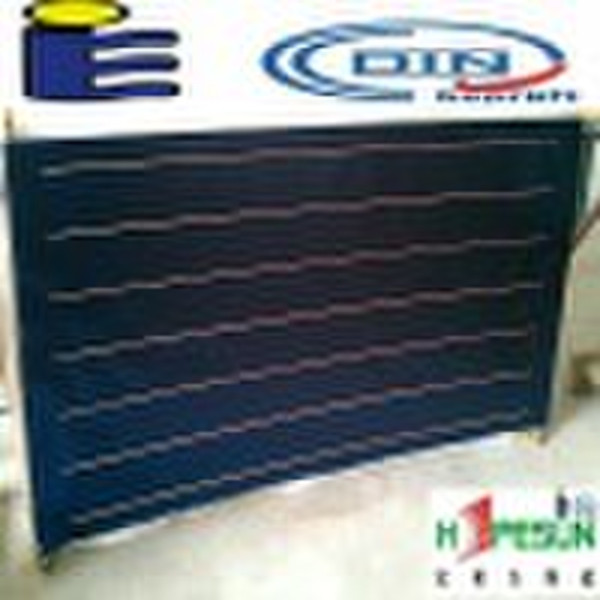

Tinxo solar flat plate collector
original price: 120,00 USD
Mac Chan
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | HOPESUN |
| Model Number | HSC-02/Tinox |
SOLAR COLLECTOR,solar flat collector, flat plate solar collector. Magnetic blue sputtering series(TINOX,Bluetec) SOLAR KEYMARK for Eu market Specification: Absorber coating: Selective blue titanium sputtering. Optical Performance: Absorption: 95% / Thermal Emission: 5% Frame Casing: Anodized Aluminum alloy. Cover glass: Low iron tempered patterned glass/ pattern tempered glass Insulation: 25mm soft fiberglass layer + 25mm high- density fiberglass board or polyurethane foam Back sheet: Embossed aluminum plate Sealing profile: EPDM. Connection:Ø22/25mm 1060*Ø25/22*0.60mm(L*OD*Thickness) Riser tubes: 8 copper tubes in 1886*Ø10*0.45mm(L*OD*Thickness) Absorber fins: 8 copper fins in 1840*125*0.15mm(L*W*Thickness) Ext. Dimension: 2000 x 1060 x 82/95mm (L x W x H). Gross /Aperture area: 2/1.85m2 Operation pressure: 650Kpa / 6.5bar Testing pressure:12bar Maximum operation temperature:200°C
Delivery terms and packaging
Packaging Detail: carton with protection Delivery Detail: in 14 days after receipt of deposit
Port: Huangpu port in Guangzhou
