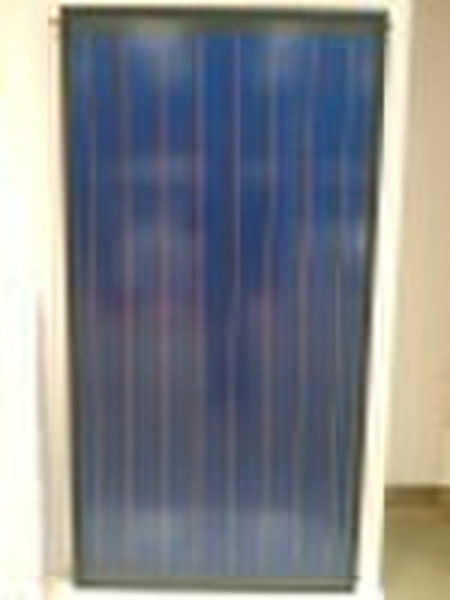

flat plate solar collectors
original price: 150,00 USD
Mac Chan
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | HOPESUN |
| Model Number | HSC-01 |
SOLAR COLLECTOR,solar flat collector, flat plate solar collector SOLAR KEY MARK CERTIFICATE FOR EU MARKET. HOT Magnetic blue sputtering series(TINOX,bluetec) Our TUV Rheiland EN 12975 certified solar flat plate collectors are highly efficient design, durable and economicalfor applications of residential solar water heating systems, central solar hot water project for schools, hotels, hospitalsand any constructions Specification: Absorber coating: Selective blue titanium sputtering Optical Performance: Absorption: 95% / Thermal Emission: 5% Frame Casing: Anodized Aluminum alloy. Cover glass: Low iron tempered patterned glass/ pattern tempered glass Insulation: 25mm soft fiberglass layer + 25mm high- density fiberglass board or polyurethane foam Back sheet: Embossed aluminum plate Sealing profile: EPDM Connection:Ø22/25mm 1060*Ø22*0.60mm(L*OD*Thickness) Riser tubes: 8 copper tubes in 1886*Ø10*0.50mm(L*OD*Thickness) Absorber fins: 8 copper fins in 1840*125*0.15mm(L*W*Thickness) Ext. Dimension: 2000 x 1060 x 82/95mm (L x W x H). Gross /Aperture area: 2/1.85m2 Operation pressure: 650Kpa / 6.5bar. Testing pressure:12bar. Maximum operation temperature:200°C
Delivery terms and packaging
Packaging Detail: carton with protection Delivery Detail: in 15 days after receipt of deposit
Port: Huangpu port in Guangzhou
Payment term
Letter of credit
Telegraphic transfer
Western Union
-
