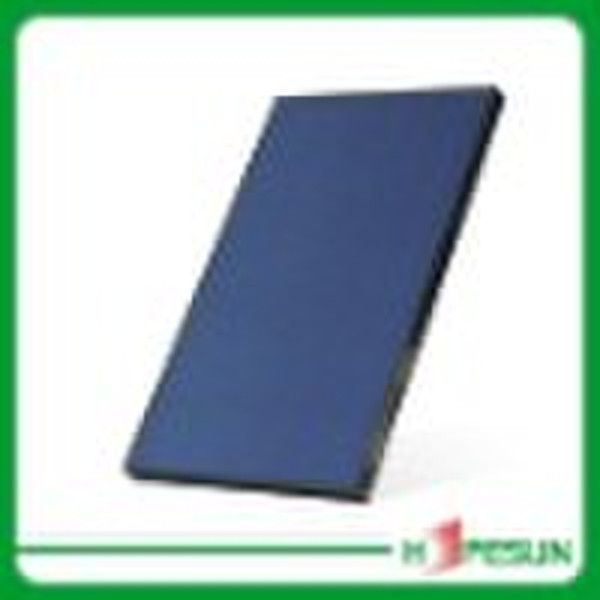

Bule Sputtering Solar Collectors
original price: 100,00 USD
Mac Chan
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | HOPE SUN or other brand as you need |
| Model Number | HSC-02 Series |
Bule Sputtering Solar Collectors Please read the specifications of Bule Sputtering Solar Collectors carefully, for other question you want ask ,kind send mail or chat with me online. 1. More sizes and requirements can be discussed. 2. Noted that we are manufacturer and the price we can insure the most reasonable,so the quality and after sale service. 3. Your enquiry are pretty welcomed! Thanks. Sara lee Solar Collectors : HSC-02 Series STANDARD SPECIFICATION: Absorber coating: Selective magnetic blue sputtering Optical Performance: Absorption: 92% / Thermal Emission: 8% Frame Casing: Anodized Aluminum alloy Cover glass: Low iron tempered patterned glass Insulation: 25mm soft fiberglass layer + 25mm high- density fiberglass board. Back sheet: embossed aluminum plate Sealing profile: EPDM Connection: Ø22/25mm Ext. Dimension: 2000 x 1060 x 68/75/82/95mm (L x W x H) Gross /Aperture area: 2 sqm/1.85/sqm Operation pressure: 650Kpa / 6.5bar MODEL SELECTION: Model Number HSC-02QT-7/8 HSC-02TL-7/8 Absorber fin Copper TP2 Aluminum Riser tube Copper TP2- Ø10mm Copper TP2- Ø10mm Header Copper TP2- Ø22 / Ø25mm Copper TP2- Ø22 / Ø25mm Number of risers 7/8 7/8
Delivery terms and packaging
Packaging Detail: solar collectorswood or carton Delivery Detail: 14 days after payment confirmed
Port: Huangpu,Guangzhou
